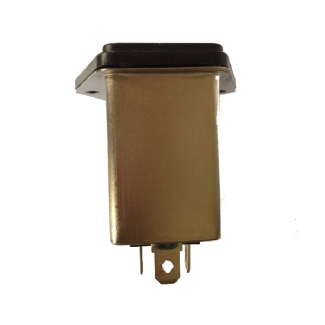

IEC插座式濾波器
型號：型號：AC-DFAC-DF系列EMI單相濾波器為IEC標準插座式一體化濾波器，具有不錯的傳導衰減性能、高性價比、通用、小巧、安裝方便等特點；應用于小型和中型電子設備和電子測量儀器，電腦、通訊設備、液晶電視、電動玩具等領域。另有帶單/雙保險絲、帶開關的通用型IEC插座式濾波器可供選擇，可來電咨詢!
產品介紹
成品識別碼：
例如：AC-DF010
（公司代碼：AC為公司簡稱，DF為產品類別，K為卡椎（卡簧）插入型，010為額定電流10A.）
產品選型表：
| 產品型號 | 額定電壓 | 尺寸圖 | 電路圖 | 泄露電流 | 尺寸/Size(unit:mm) | |||||
| 長 | 寬 | 高 | 孔距 | 安裝孔 | 接線方式 | |||||
| AC-DF001 | 125/250V | A | fig.1 | ≤0.5mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DF003 | 125/250V | A | fig.1 | ≤0.5mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DF006 | 125/250V | A | fig.1 | ≤0.5mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DF010 | 125/250V | A | fig.1 | ≤0.5mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DFY001 | 125/250V | A | fig.2 | ≤0.01mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DFY003 | 125/250V | A | fig.2 | ≤0.01mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DFY006 | 125/250V | A | fig.2 | ≤0.01mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DFY010 | 125/250V | A | fig.2 | ≤0.5mA | 52 | 22.5 | 57 | 40 | 2-Φ3.3 | 插片 |
| AC-DFK001 | 125/250V | A-K | fig.1 | ≤0.5mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFK003 | 125/250V | A-K | fig.1 | ≤0.5mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFK006 | 125/250V | A-K | fig.1 | ≤0.5mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFK010 | 125/250V | A-K | fig.1 | ≤0.5mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFKY001 | 125/250V | A-K | fig.2 | ≤0.01mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFKY003 | 125/250V | A-K | fig.2 | ≤0.01mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFKY006 | 125/250V | A-K | fig.2 | ≤0.01mA | 31 | 24 | 57 | -- | -- | 插片 |
| AC-DFKY010 | 125/250V | A-K | fig.2 | ≤0.01mA | 31 | 24 | 57 | -- | -- | 插片 |

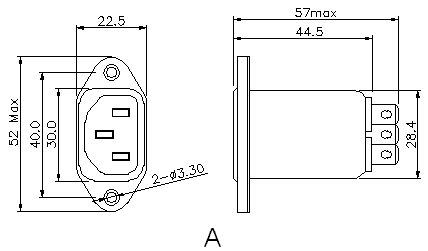

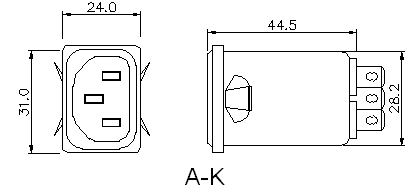

外形尺寸圖：
